1/2" 410 Stainless Steel Internal Tooth Lock Washers
B&N Pro eligible item. Save 10% when you join Pro. Learn more.
Pack Size
1
$0.45/pc
Popular
100
$0.34/pc
200
$0.29/pc
500
$0.23/pc
Best Value
4000
$0.17/pc
$0.45
B&N Pro
$0.00
Member Price
(Shipping $8.95) Add [amount] more for FREE SHIPPING
| Finish | Plain |
| Diameter | 1/2" |
| Inside Diameter | 0.530" nom |
| Grade Material | 410 Stainless Steel |
| Specifications Met | ASME B18.21.1 |
| Thickness | 0.045" nom |
| Locking Type | Serrated tooth bite |
| Pattern | Internal Tooth (Star) |
| Outside Diameter | 0.900" nom |
| System | Inch |
Technical Drawing
Not to scale · ASME B18.21.1 · See table for exact dimensions
Technical Dimensions
| Outside Diameter | 0.900" nom |
| Inside Diameter | 0.530" nom |
| Thickness | 0.045" nom |
| Fits Bolt Size | 1/2" |
| Pattern | Internal Tooth (Star) |
| Locking Action | Serrated tooth bite |

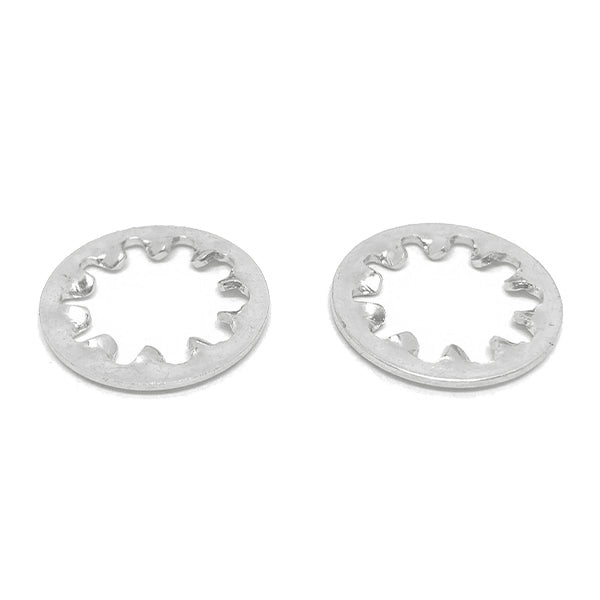

Internal tooth lock washer: twisted teeth around the inside edge bite the fastener head and the bearing surface to resist turning. The teeth sit hidden under the head for a neat appearance.
Dimensions conform to ASME B18.21.1 and may vary within specified manufacturing tolerances.
