Product Description
Part Number: 50F300BSHCSABO
Diameter/Pitch: 1/2"-20
Length Under Head: 3"
Grade: Alloy Steel
Finish: Black Oxide
Coarse / Fine Threads: Fine
Partial / Full Threads: Full
Hex Key Size: 5/16"
Click Here for Tech Drawing
BoltsandNuts.com

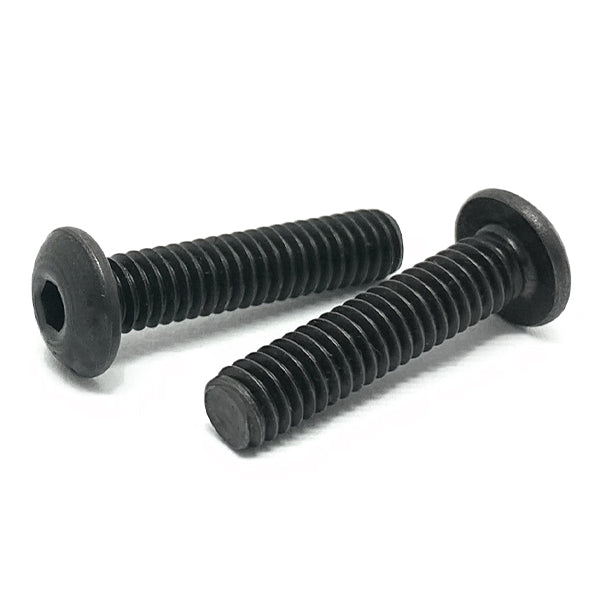

1/2-20x3" Alloy Button Head Socket Cap Screws Black Oxide
Product Description
Part Number: 50F300BSHCSABO
Diameter/Pitch: 1/2"-20
Length Under Head: 3"
Grade: Alloy Steel
Finish: Black Oxide
Coarse / Fine Threads: Fine
Partial / Full Threads: Full
Hex Key Size: 5/16"
Click Here for Tech Drawing
B&N Pro eligible item. Save 10% when you join Pro. Learn more.
Pack Size
1
$6.59/pc
Popular
10
$4.94/pc
20
$4.20/pc
50
$3.36/pc
Best Value
150
$2.52/pc
$6.59
B&N Pro
$0.00
Member Price
(Shipping $8.95) Add [amount] more for FREE SHIPPING
| Diameter Pitch | 1/2-20 |
| Grade Material | Alloy Steel |
| Partial Full Threads | Full |
| Threads Per Inch | 20 TPI |
| Hex Key Size | 5/16" |
| Tensile Stress Area | 0.1600 sq in |
| Head Type | Button Socket |
| Inch Metric | Inch |
| Length Under Head | 3" |
| Finish | Black Oxide |
| Coarse Fine Threads | Fine |
| Head Height | 0.265" max |
| Min Tensile Load | 23,190 lbf |
| Drive | Hex Socket |
| Head Diameter | 0.875" max |
| Grade | Alloy Steel |
| Material | Alloy steel, heat treated (ASTM F835) |
| Thread Class | 2A |
| Major Diameter | 0.500" |
| Tensile Strength | 145,000 psi |
| Length | 3" |
| Nominal Size | 1/2" |
