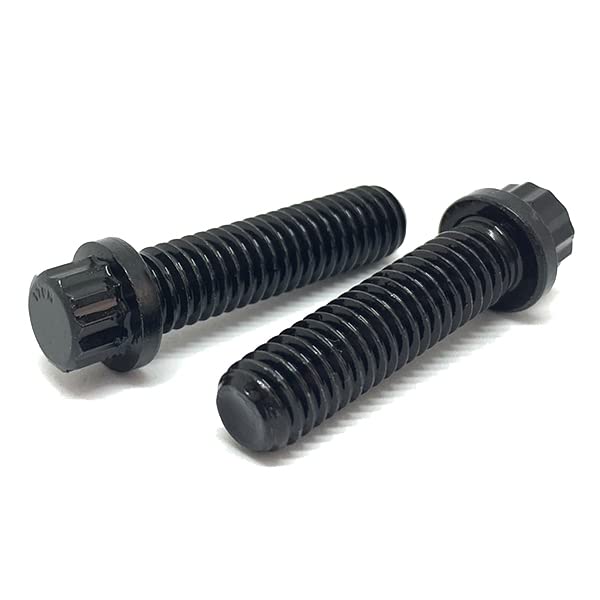

1/2-20x1-1/4" Alloy 12 Point Flange Screws Black Oxide

Product Description

Part Number: 50F125BFL12PL
Diameter/Pitch: 1/2"-20
Length Under Head: 1-1/4"
Grade: Alloy Steel (170M)
Finish: Black Oxide
Coarse / Fine Threads: Fine
Partial / Full Threads: Full
Wrench Size: 1/2"
Click Here for Tech Drawing

BoltsandNuts.com

1/2-20x1-1/4" Alloy 12 Point Flange Screws Black Oxide

SKU: 50F125BFL12PL

Product Description

Part Number: 50F125BFL12PL
Diameter/Pitch: 1/2"-20
Length Under Head: 1-1/4"
Grade: Alloy Steel (170M)
Finish: Black Oxide
Coarse / Fine Threads: Fine
Partial / Full Threads: Full
Wrench Size: 1/2"
Click Here for Tech Drawing

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$11.12/pc

Popular

15

$8.34/pc

30

$7.09/pc

75

$5.67/pc

Best Value

380

$4.25/pc

$11.12

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Diameter Pitch	1/2"-20
Grade Material	Alloy Steel (170M)
Partial Full Threads	Full
Threads Per Inch	20 TPI
Proof Load	22,390 lbf
Tensile Strength	170,000 psi
Hardness	Rockwell C33–C38
Drive	12-Point External
Nominal Size	1/2"

Length Under Head	1-1/4"
Finish	Black Oxide
Coarse Fine Threads	Fine
Wrench Size	1/2"
Clamp Load	16,800 lbf
Yield Strength	150,000 psi
Torque Dry	140 ft-lb
Length	1-1/4"
Inch Metric	Inch

Grade	Alloy Steel (170 ksi)
Material	Alloy steel, quenched and tempered (IFI-115)
Thread Class	3A
Major Diameter	0.500"
Min Tensile Load	27,190 lbf
Tensile Stress Area	0.1600 sq in
Torque Lubricated	105 ft-lb
Head Type	12-Point Flange
