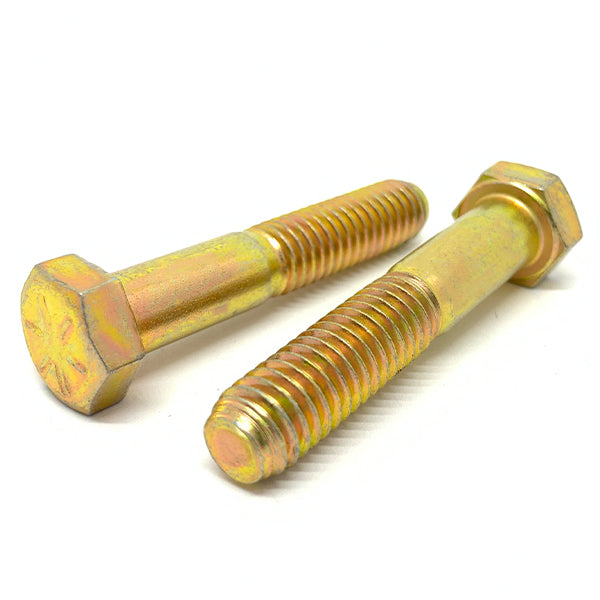

1/2-13x2" Hex Head Cap Screws Grade 8 Zinc Yellow

Product Description

Part Number: 50C200HCS8Y
Diameter/Pitch: 1/2"-13
Grade: Grade 8
Length Under Head: 2"
Finish: Zinc Yellow
Thread Series: Coarse (UNC)
Threading: Partially threaded
Wrench Size: 3/4"

BoltsandNuts.com

1/2-13x2" Hex Head Cap Screws Grade 8 Zinc Yellow

SKU: 50C200HCS8Y

Product Description

Part Number: 50C200HCS8Y
Diameter/Pitch: 1/2"-13
Grade: Grade 8
Length Under Head: 2"
Finish: Zinc Yellow
Thread Series: Coarse (UNC)
Threading: Partially threaded
Wrench Size: 3/4"

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$1.87/pc

Popular

10

$1.40/pc

20

$1.19/pc

50

$0.95/pc

Best Value

250

$0.72/pc

$1.87

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Thread Size	1/2"-13
Material	Medium carbon alloy steel, quenched and tempered
Wrench Size	3/4"
Thread Length	1.250" min
Thread Class	2A
Hardness	Rockwell C33–C39

Length	2"
Finish	Zinc Yellow
Thread Series	Coarse (UNC)
Head Height	0.302" – 0.323"
Tensile Strength (min)	150,000 psi
Specifications Met	ASME B18.2.1, SAE J429 Grade 8

Grade	Grade 8
Head Type	Hex Cap
Threading	Partially threaded
Head Marking	Six radial lines on head
Proof Load (min)	17,030 lbf

Technical Drawing

Not to scale · ASME B18.2.1 · See table for exact dimensions

Technical Dimensions

Length Under Head	2"
Major Thread Dia.	0.500"
Head Height	0.302" – 0.323"
Width Across Flats	0.750" (3/4")
Width Across Corners	0.866" max
Threads Per Inch	13 TPI
Thread Length	1.250" min
Thread Class	2A
Proof Load	17,030 lbf
Clamp Load	12,770 lbf
Min. Tensile Strength	150,000 psi
Yield Strength	130,000 psi
Hardness	Rockwell C33–C39

Hex cap screw with a hexagonal head for external wrench engagement and a chamfered point for easier starting. The flat bearing surface distributes clamp load across the joint. Partially threaded shank, plain under the head, with unified coarse (UNC) threads.

Dimensions conform to ASME B18.2.1 and may vary within specified manufacturing tolerances.
