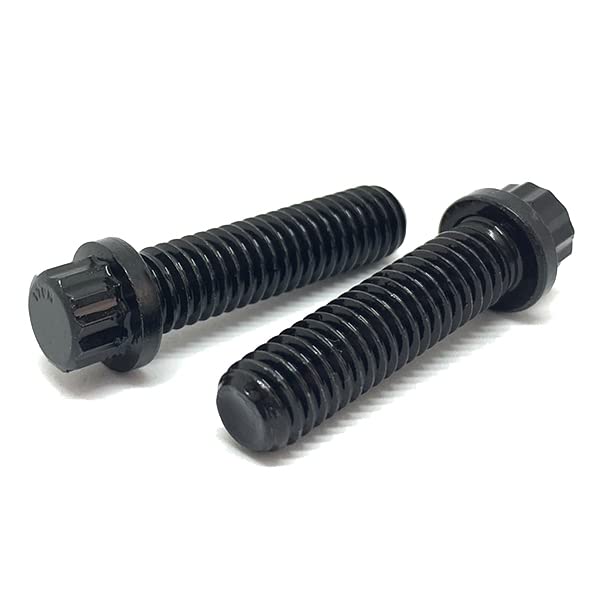

1/2-13x2-1/4" Alloy 12 Point Flange Screws Black Oxide

Product Description

Part Number: 50C225BFL12PL
Diameter/Pitch: 1/2"-13
Length Under Head: 2-1/4"
Grade: Alloy Steel (170M)
Finish: Black Oxide
Coarse / Fine Threads: Coarse
Partial / Full Threads: Partial
Wrench Size: 1/2"
Click Here for Tech Drawing

BoltsandNuts.com

1/2-13x2-1/4" Alloy 12 Point Flange Screws Black Oxide

SKU: 50C225BFL12PL

Product Description

Part Number: 50C225BFL12PL
Diameter/Pitch: 1/2"-13
Length Under Head: 2-1/4"
Grade: Alloy Steel (170M)
Finish: Black Oxide
Coarse / Fine Threads: Coarse
Partial / Full Threads: Partial
Wrench Size: 1/2"
Click Here for Tech Drawing

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$4.51/pc

Popular

15

$3.38/pc

30

$2.87/pc

75

$2.30/pc

Best Value

250

$1.72/pc

$4.51

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Diameter Pitch	1/2"-13
Grade Material	Alloy Steel (170M)
Partial Full Threads	Partial
Threads Per Inch	13 TPI
Proof Load	19,870 lbf
Tensile Strength	170,000 psi
Hardness	Rockwell C33–C38
Drive	12-Point External
Nominal Size	1/2"

Length Under Head	2-1/4"
Finish	Black Oxide
Coarse Fine Threads	Coarse
Wrench Size	1/2"
Clamp Load	14,900 lbf
Yield Strength	150,000 psi
Torque Dry	124 ft-lb
Length	2-1/4"
Inch Metric	Inch

Grade	Alloy Steel (170 ksi)
Material	Alloy steel, quenched and tempered (IFI-115)
Thread Class	3A
Major Diameter	0.500"
Min Tensile Load	24,120 lbf
Tensile Stress Area	0.1419 sq in
Torque Lubricated	93 ft-lb
Head Type	12-Point Flange
