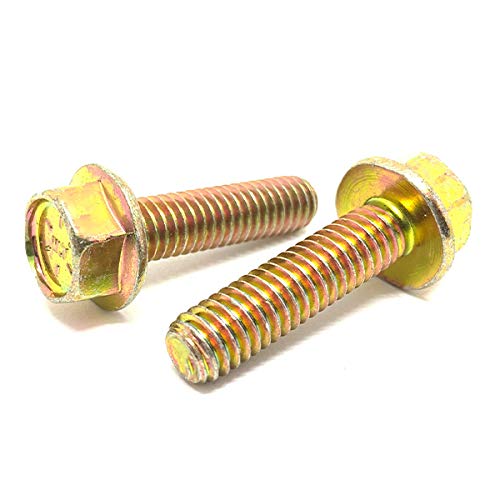

1/2-13x1-1/4" Grade 8 Hex Flange Frame Bolts Zinc Yellow

Product Description

Part Number: 50C125BFL8Y
Diameter/Pitch: 1/2"-13
Length Under Head: 1-1/4"
Grade: Grade 8
Finish: Zinc Yellow
Coarse / Fine Threads: Coarse
Partial / Full Threads: Full
Wrench Size: 3/4"
Click Here for Tech Drawing

BoltsandNuts.com

1/2-13x1-1/4" Grade 8 Hex Flange Frame Bolts Zinc Yellow

SKU: 50C125BFL8Y

Product Description

Part Number: 50C125BFL8Y
Diameter/Pitch: 1/2"-13
Length Under Head: 1-1/4"
Grade: Grade 8
Finish: Zinc Yellow
Coarse / Fine Threads: Coarse
Partial / Full Threads: Full
Wrench Size: 3/4"
Click Here for Tech Drawing

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$3.34/pc

Popular

15

$2.50/pc

30

$2.13/pc

75

$1.70/pc

Best Value

275

$1.27/pc

$3.34

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Diameter Pitch	1/2"-13
Grade Material	Grade 8
Partial Full Threads	Full
Threads Per Inch	13 TPI
Proof Load	17,030 lbf
Tensile Strength	150,000 psi
Tensile Stress Area	0.1419 sq in
Torque Dry	106 ft-lb
Head Type	Hex Flange (Frame Bolt)

Length Under Head	1-1/4"
Finish	Zinc Yellow
Coarse Fine Threads	Coarse
Wrench Size	3/4"
Clamp Load	12,770 lbf
Yield Strength	130,000 psi
Hardness	Rockwell C33–C39
Torque Lubricated	80 ft-lb
Nominal Size	1/2"

Grade	Grade 8
Material	Medium carbon alloy steel, quenched and tempered
Thread Class	2A
Major Diameter	0.500"
Min Tensile Load	21,280 lbf
Proof Stress	120,000 psi
Head Marking	Six radial lines on head
Length	1-1/4"
Inch Metric	Inch
