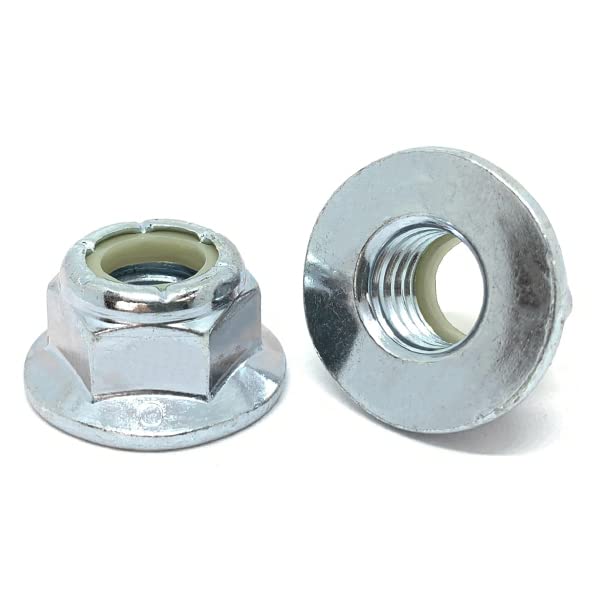

1/2"-13 Grade 5 Nylon Insert Hex Flange Lock Nuts Zinc

Product Description

Part Number: 50cnfnfz
Diameter/Pitch: 1/2"-13
Grade: Grade 5
Finish: Zinc Clear
Thread Series: Coarse (UNC)
Wrench Size: 3/4"

BoltsandNuts.com

1/2"-13 Grade 5 Nylon Insert Hex Flange Lock Nuts Zinc

SKU: 50CNFNFZ

Product Description

Part Number: 50cnfnfz
Diameter/Pitch: 1/2"-13
Grade: Grade 5
Finish: Zinc Clear
Thread Series: Coarse (UNC)
Wrench Size: 3/4"

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$1.99/pc

Popular

15

$1.49/pc

30

$1.27/pc

75

$1.01/pc

Best Value

700

$0.76/pc

$1.99

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Thread Size	1/2"-13
Finish	Zinc Clear
Thread Series	Coarse (UNC)
Proof Load (min)	17,030 lbf
Max Temperature	250°F (nylon insert limit)

Grade	Grade 5
Head Type	Hex Flange
Head Marking	J995 Grade 5 marking
Hardness	Rockwell C25–C34

Material	Medium carbon steel, quenched and tempered
Wrench Size	3/4"
Thread Class	2B
Locking Type	Nylon Insert (Prevailing Torque)

Technical Drawing

Not to scale · IFI-100/107 · See table for exact dimensions

Technical Dimensions

Wrench Size	3/4"
Thread Size	1/2"-13
Threads Per Inch	13 TPI
Thread Class	2B
Flange Style	Nylon Insert Flange Nuts
Head Type	Hex Flange
Material	Medium carbon steel, quenched and tempered

Hex flange nut with a nylon insert ring at the top that grips the bolt thread to resist vibration loosening, and an integral flange that spreads load like a built-in washer. Not for use above the insert temperature limit.

Dimensions conform to IFI-100/107 and may vary within specified manufacturing tolerances.
